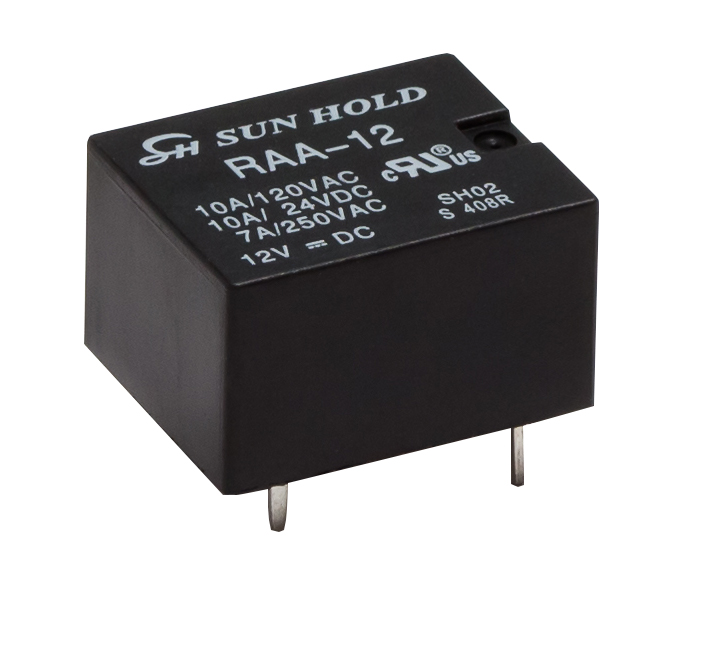

RAA

Main Features:

UL safety approval.
Heavy current up to 10 amps available.
Epoxy seal type and flux free.
Satisfying all requirements for household electronic appliances.
RoHS 2011/65/EU compliant.

Download Product Information

LxWxH(mm)		19.2x15.4x11.0
Arrangement		1a, 1b, 1c
Contact Current		10A
Contact Rating		125VAC 10A 250VAC 7A 24VDC 10A

Coil VoLtage	DC	3-48VDC
	AC
Coil Power	DC	0.36W
		0.45W
	AC
Insulation Resistance		DC500V 100MΩ
Dielectric Strength		1500VAC
between coil & contact
Life	Mechanically	1x10⁷
	Electriaclly	1x10⁵
