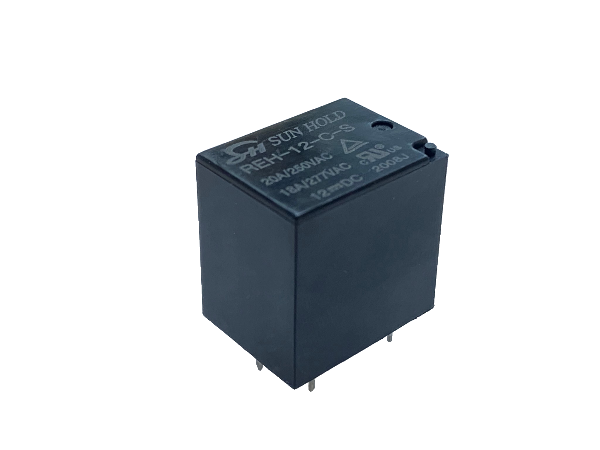

REH

Main Features:

High performance PCB power relay for mortor control,compressor control.
Surge strength 2,500VAC.
Special design for household appliances flux free and sealed type available.
High ratings:20A/250VAC,17A/277VAC.
Insulation system:Class F.
Environmental friendly poduct(RoHS complaint).

Download Product Information

LxWxH(mm)		21x16x20.6
Arrangement		1a, 1b, 1c
Contact Current		20A
Contact Rating		250VAC 20A 277VAC 17A
		Coil VoLtage	DC	3-48VDC
			AC
Coil Power	DC	0.36W
	AC
Insulation Resistance		DC500V 100MΩ
Dielectric Strength		2500VAC AC1000V
between coil & contact
Life	Mechanically	1x10⁷
	Electriaclly	1x10⁵
