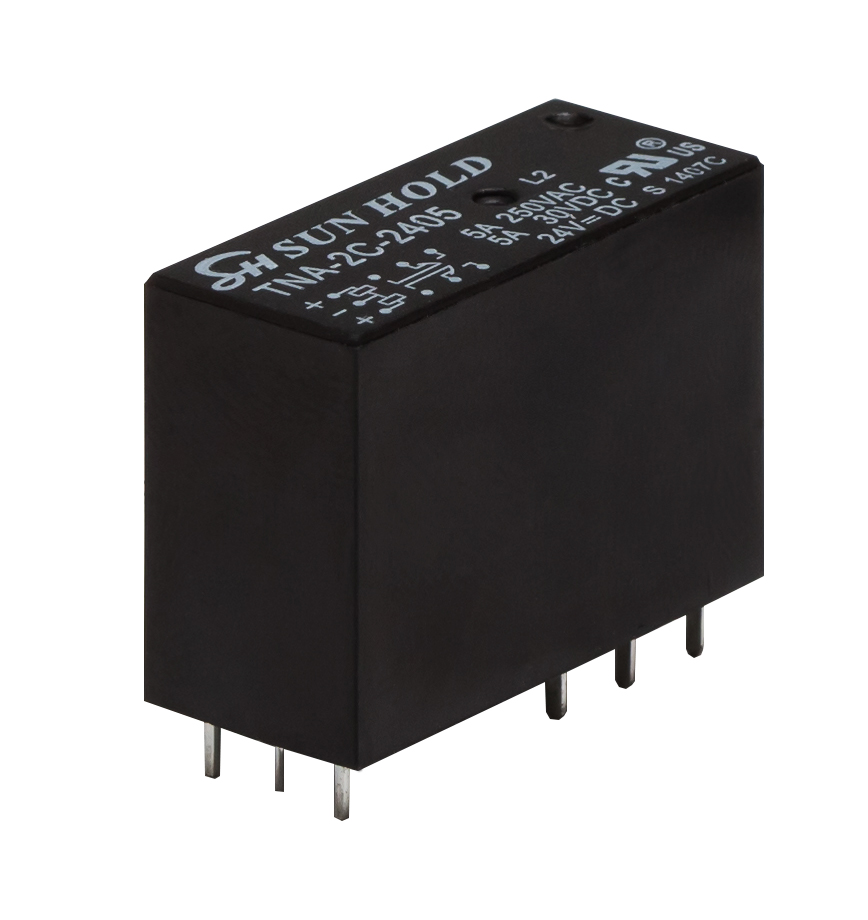

TNA-L1,L2(Latching)
Main Features:
  • UL & TUV safety approval.
  • Plastic sealed type is available for washing procedure.
  • 2 pole 5A,1 pole 10A & 16A.
  • Dielectric strengh: 5,000VAC.
  • RoHS 2011/65/EU compliant.
LxWxH(mm) 29.0x12.6x20.8
Arrangement 1C,2C
Contact Current 5A, 10A, 16A
Contact Rating
250VAC 5A
30VDC 5A
250VAC 10A
30VDC 10A
250VAC 16A
30VDC 16A
Coil VoLtage DC 5-48VDC
AC
Coil Power DC L1:0.4W
L2:0.6W
AC
Insulation Resistance DC500V 1000MΩ
Dielectric Strength 5000VAC
between coil & contact
Life Mechanically 1x107
Electriaclly 1x105
