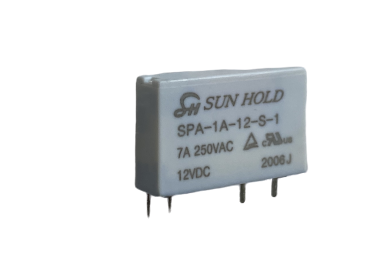

SPA (General Control Relays)
Main Features:
  • 1 form A contact.
  • small size produces a switching capacity up to 7 amps for high density PCB mounting technique.
  • surge strength 3,000VDC.
  • special design for household appliances flux free and sealed type available.
  • Insulation system:Class F.
  • Environmental friendly poduct(RoHS complaint).
  • LxWxH(mm) 20.0x5.0x12.5
    Arrangement 1a
    Contact Current 5A, 7A
    Contaect Rating
    1a:
    250VAC 5A
    1a:
    250VAC 7A
    Coil VoLtage DC 3-24VDC
    AC
    Coil Power DC 0.12W,0.18w
    AC
    Insulation Resistance DC500V 1000MΩ
    Dielectric Strength 3000VAC,1000VAC
    between coil & contact
    Life Mechanically 1x107
    Electriaclly 1x105
