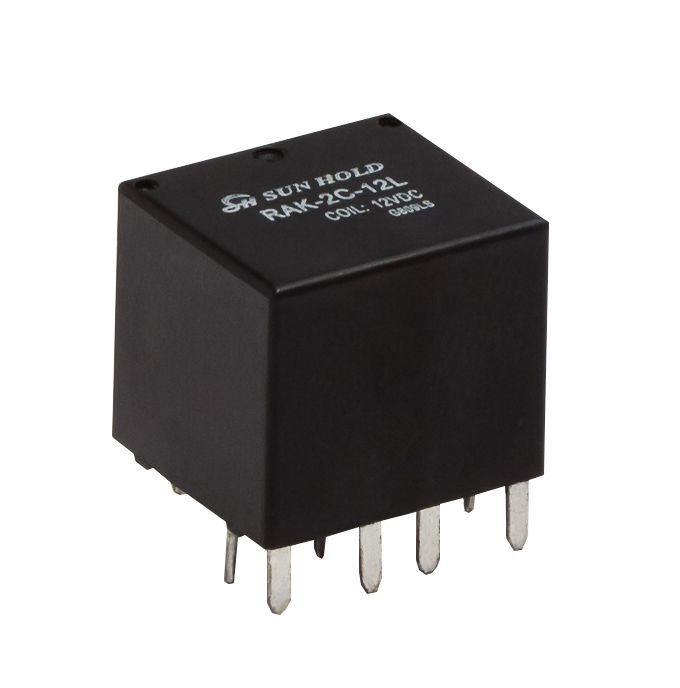

RAK(Automotive Relays)

Main Features:

Automotive Relay.
Slim and small type PCB Relay.
Contact rating up to 25 amps.
Single and Twin version available.
RoHS 2011/65/EU compliant.

Download Product Information

LxWxH(mm)		14.3x7.5x13.8
Arrangement		1c,2c
Contact Current		25A
Contact Rating		14VDC 25A
Coil VoLtage	DC	12VDC
	AC
Coil Power	DC	0.64W
		0.8W
	AC
Insulation Resistance		DC500V 100MΩ
Dielectric Strength		500VAC
between coil & contact
Life	Mechanically	1x10⁷
	Electriaclly	2x10⁵
