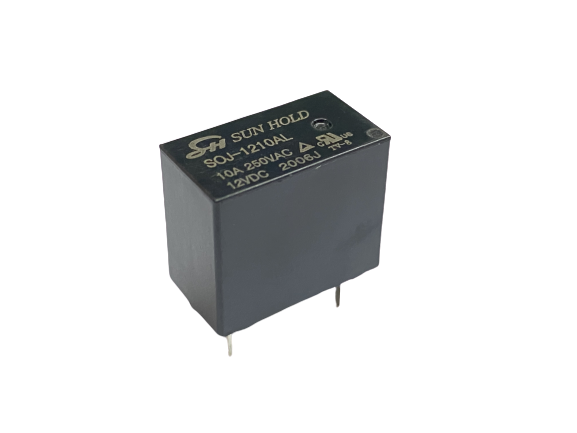

SOJ HIGH POWER
Main Features:
  • 1 form A contact.
  • Small size produces a switching capacity up to 10,18 or 20 amps for high density PCB mounting technique.
  • Surge strength 4,000 VAC.
  • Special design for household appliances flux free and sealed type available.
  • High ratings:10A/250VAC,18A/277VAC,20A/250VAC,TV-8,1/3HP 250VAC.
  • Insulation system:class F.
  • Environmental friendly poduct(RoHS complaint).
LxWxH(mm) 18.2x10.2x15.5
Arrangement 1c,1a
Contact Current 10A,18A,20A
Contact Rating
277VAC 18A
250VAC 20A
250VDC 10A,DC18V 10A
Coil VoLtage DC 3-36VDC
AC
Coil Power DC 0.45W
L:0.2W
AC
Insulation Resistance DC500V 100MΩ
Dielectric Strength 4000VAC
between coil & contact
Life Mechanically 1x107
Electriaclly 1x105
