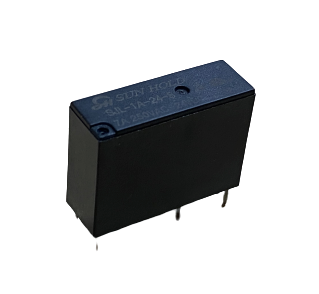

SJL(General control)
Main Features: ul style="list-style-image: url(/images/icon/square_o.gif)">
  • Switching capacity up to 10A.
  • Low coil power consumption 0.2W.
  • Low cost miniature PCB power Relays slim type 7mm width.
  • RoHS 2011/65/EU compliant.
  • LxWxH(mm) 20.5x7.0x15.1
    Arrangement 1a
    Contact Current 5A,7A,10A
    Contact Rating
     250VAC 5A, 25VAC 7A, 250VAC 10A
    30VDC 5A,30VDC 7A,30VDC 10A


    Coil VoLtage DC 3-24VDC
    AC
    Coil Power DC 0.2W
    AC
    Insulation Resistance DC500V 100MΩ
    Dielectric Strength 4000VAC
    750VAC
    between coil & contact
    Life Mechanically 1x107
    Electriaclly 1x105
